Overview

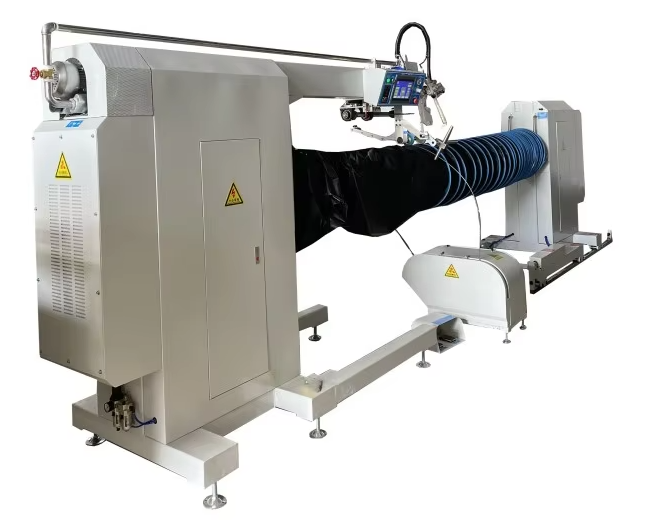

PVC flexible spiral air pipe production machine is specially used to produce flexible spiral air pipes made of PVC material. This kind of air duct is widely used in ventilation, air conditioning, dust removal and other fields, and has the characteristics of good flexibility, corrosion resistance and easy installation.
Features
1. Automatic Wire cord feeding, PVC strip unwinding。
2. High degree of automation.
3. Fast production speed, greatly improve production efficiency.
4. PLC/HMI easy operation touch screen, English Interface.
5. The use of advanced control system to ensure that the product size is accurate, stable performance.
6. Man-machine interface is friendly, simple operation, easy to master.
7. Wide application range: Flexible spiral air ducts of different specifications and materials can be produced to meet a variety of needs.
8. The use of high-efficiency motor can save energy and reduce environmental pollution.
Specifications
Model | NS-20D |
Power | 2000W |
Voltage | 380 V 50/60 Hz |
Speed | 1-10 m/min |
Up roller lift | 20-40mm |
Finished duct diameter | 400-1800mm |
Welding width | 30-50mm |
Throat length | 800 mm |
Temperature | up to 750 ℃ |

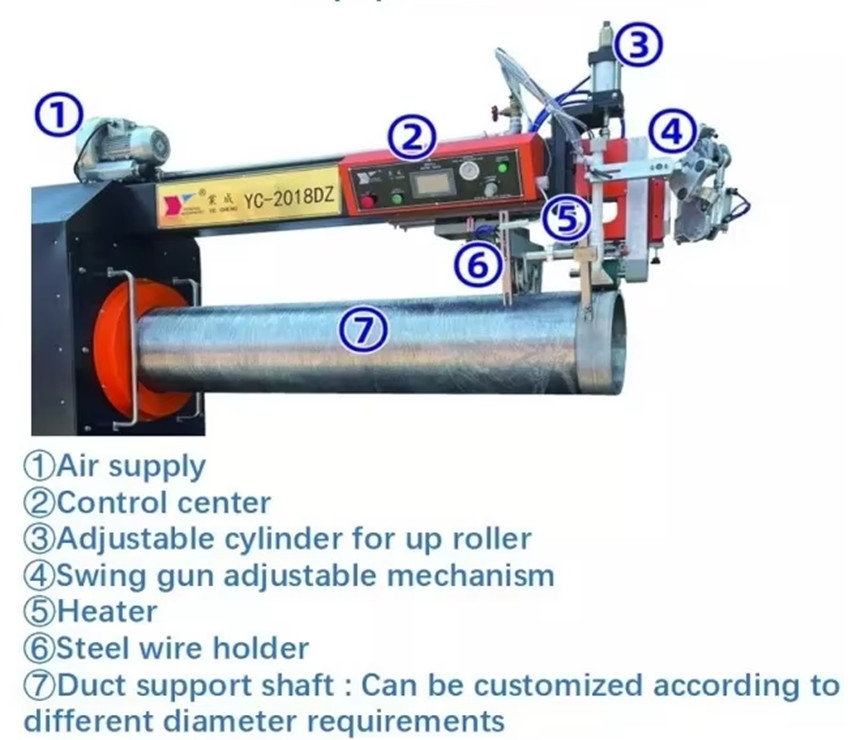

Equipment introduction
