Product Overview

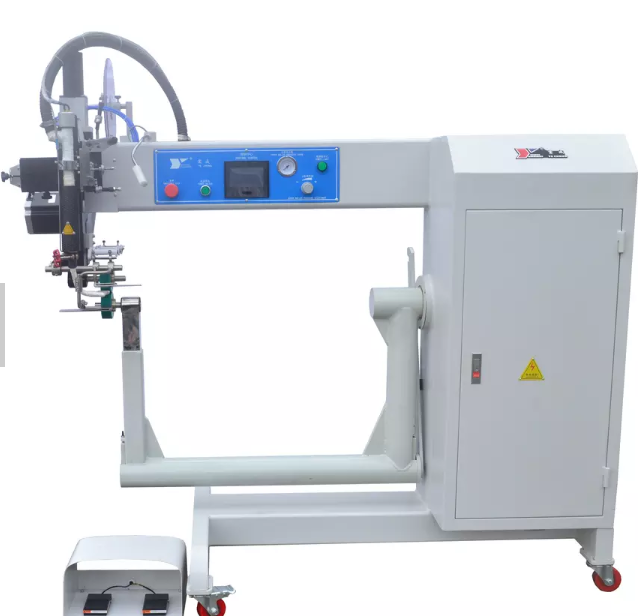

Hot air PVC flexible ducting making machine is an advanced equipment specially designed for PVC ducts. This machine skillfully integrates hot air welding technology and automatic production process, and has a wide range of applications in the construction industry and industrial ventilation field.



Product Parameter

Power

3500W

Power Consumption

6000W

Voltage

AC 220 V    50/60 Hz

Rated Current

18A

Speed

1.1-24 m/min

Working Pressure

0.5-0.7Mpa

Width of roller

10-50 mm

Hot Wedge Welding Size

Less than 45mm

Upper roller lift

15-25 mm

Throat length

800 mm

Temperature

up to 750



Product Features

1.      Component parts: wire unwinder, PVC tape unwinder, hot air welder, finished ducting receiver.

2.      Automatic Wire cord feeding, PVC strip unwinding, continuous operation for high speed production.

3.      Variable wire diameter.

4.      PLC/HMI easy operation touch screen.

5.      Precise Temperature control, max 750
