name: Large Diameter Machine for Welding PVC Ducting, Hose and Tubes
date: 2024-08-02 11:38:45
view: 168
about:

  We, NEWSTAR PLASTIC INDUSTRY CO.,LTD., is a professional supplier of flexible ventilation ducting for mine and tunnels in China. Being engaged in the field of mine ventilation for more than 30 years, we have rich experience in making all kinds of fle...




DETAIL



Product Parameter

Heater Power

1800 W

Power Consumption

3 KW

Voltage

AC 220 V    50/60 Hz

Rated Current

15 A

Speed

1.1-24 m/min

Working Pressure

3-6 KG/cm²

Upper Roller Pressure

0.5-4.5 KG/cm²

Width of roller

10-50 mm

Width of hot air nozzle

10-50 mm

Hot Wedge Welding Size

Less than 45mm

Upper roller lift

15-25 mm

Throat length

800 mm

Temperature

up to 750



Product Applications

• Construction field: Used for the splicing of waterproof coil, impermeable film and other materials to ensure the waterproof and impermeable performance of buildings.

• Engineering field: In highways, Bridges, reservoirs and other waterproof projects, used for large area PVC tarpaulin, waterproof coil splicing.

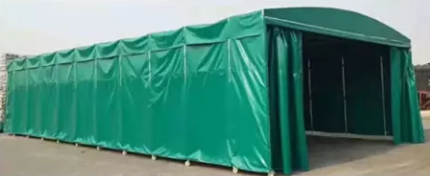

• Advertising industry: Used in the production of advertising tents and inflatable advertising products to ensure the robustness and durability of the products.

• Other fields: Such as aquaculture ponds, swimming pools, landfills and other waterproof, anti-seepage projects, also has an important application.

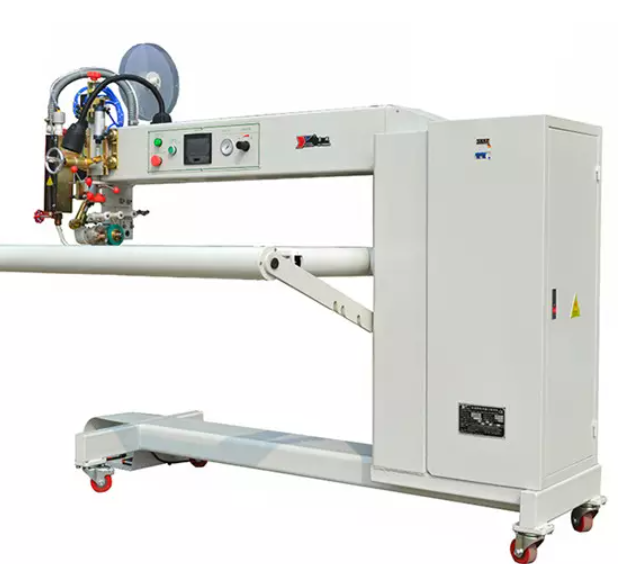

Large Diameter Machine for Welding PVC Ducting, Hose and Tubes(图1)

Large Diameter Machine for Welding PVC Ducting, Hose and Tubes(图2)

Large Diameter Machine for Welding PVC Ducting, Hose and Tubes(图3)

Large Diameter Machine for Welding PVC Ducting, Hose and Tubes(图4)
