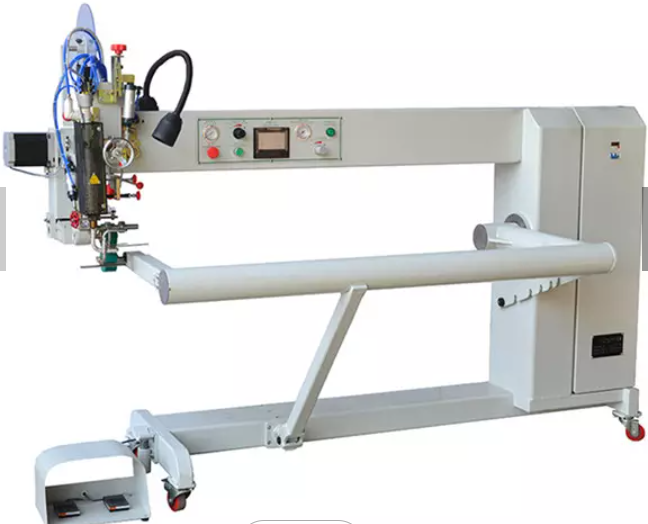

name: Tarps Welder Hot Air PE Film Welding Machine with Pullers
date: 2024-08-02 11:34:45
view: 174
about:

  We, NEWSTAR PLASTIC INDUSTRY CO.,LTD., is a professional supplier of flexible ventilation ducting for mine and tunnels in China. Being engaged in the field of mine ventilation for more than 30 years, we have rich experience in making all kinds of fle...




DETAIL



Product Parameter

Heater Power

1800 W

Power Consumption

3 KW

Voltage

AC 220 V    50/60 Hz

Rated Current

15 A

Speed

1.1-24 m/min

Working Pressure

3-6 KG/cm²

Upper Roller Pressure

0.5-4.5 KG/cm²

Width of roller

10-50 mm

Width of hot air nozzle

10-50 mm

Hot Wedge Welding Size

Less than 45mm

Upper roller lift

15-25 mm

Throat length

800 mm

Temperature

up to 750

Wide range of applications

Tarps Welder Hot Air PE Film Welding Machine with Pullers(图1)
